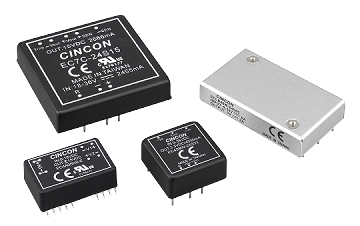

CINCON互轉器DIP / SMD 3-75W

推送準確時間：2022-03-14 16:40:05     網頁瀏覽：989

CINCON的DIP DC-DC改換器包括各個封裝表現形式表現形式，舉列3W至15W的DIP24或SMD24封裝類型風格，10W至30W的1”x1”封裝主要形式，10W至75W的2”x1”裝封的形式，2”x1.6”和2”x2”封裝風格從15W到40W。CINCON具備條件達到29年的成功研制工做閱歷，得益于打造于鐵道交通出行、行業出產、ITE、5G聯通、醫療管理專用設備家庭環境環境選用區域。

相對 重工業制造銷售APP領域行業，CINCON全部的DIPDC-DC轉移器也可以適用于工業品制作APP前沿技術。

來說高速公路交通銀行用的領域，有支持EN50155標準的的DIP轉換成器，諸如DIP248W和10W、2”x1”芯片封裝模式20W和40W。凡此種種，CINCON提拱2”x1”、20W、18:1超大手機輸入依據DC-DC切換器，包函用系統軟件的大量地理分布式應用電阻值。

DIP變換器，DC到DC電源線加工經銷商

CINCON設計方案和研發應具領域細則和引腳排列順序的3W-75WDC/DCDIP變為器。特色是利用率高、工作任務溫暖高、輸出區間寬。CINCON還可以為各式各樣適用方向作為非防護防護隔離和高防護防護隔離DC/DC切換器。東莞 市立維創展科技欧美激情一区二区-国产激情在线-欧美在线一区二区-亚洲欧美综合是CINCON外接電源模塊圖片的POS機代理經銷處商，能提供CINCON24v電源引擎的DC-DC互轉器、AC-DC電原、LED交流電源等，產品的原裝到口進口商，的品質質量保障，極有房價競爭優勢，歡迎詞資詢

具體詳情介紹CINCON開關電源請點擊進入：//www.myloveidc.com/article/2177.html


18:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)
NEWEC7BW1820W8.5~160V12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
  UL62368-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
4:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AW3W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AW6W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC6AW8W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN50155 Compliant

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SBW10W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC4BW10W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55022 Class A

2.00x1.00x0.40(DIP)
NEWEC7AW10W18~74V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC6AW-11010W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
  UL60950-1 & CB
  EN45545-2
  EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC8AW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC3SBW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC5BW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5C15W18~72V, 9~36V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC1SC20W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5VEN55022 Class A2.00×1.60×0.45(DIP)

EC4SBW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC7BW-11020W43~160V12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
NRNDEC3SCW30W18~75V, 9~36V12V, 15V, 3.3V, 5V

1.5KVdc Isolation
  EN60950-1

2.00×1.60×0.40(DIP)

EC5SBW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)
NRNDEC6E30W18~72V, 9~36V+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V,   ±12V, ±15V500Vdc Isolation2.56x3.00x0.83(DIP)

EC9BW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

ECLB40W40W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB40W-11040W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB60W60W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
NEWECLB75W75W18~75V, 9~36V12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
2:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3A3W18~36V, 36~72V, 4.5~6V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3AB3W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)

NRNDEC3BB7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
  EN55022 Class B

2.00x1.00x0.40(DIP)

EC3A-E3W18~36V, 36~72V, 4.5~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC4A6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AB6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)


EC4A-E6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC6A7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SB10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)


EC4BE10W18~36V, 36~72V, 9~18V12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC4BU10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7A10W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3SB15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)

NRNDEC3C15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500Vdc Isolation2.00x2.00x0.40(DIP)

EC5BU15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5BE15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7B20W18~36V, 36~75V, 9~18V1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V,   ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

EC6C30W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC7C40W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3/5V, 3.3/±12V,   3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)
High Isolation 6KV

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC4AW-H66W18~72VDC, 9~36VDC12V, 5V, ±12V, ±15V

6KVdc Isolation
  EN55032 Class A
  5uA Leakage Current

1.25x0.80x0.40
  (DIP24)

+/-10% Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AE3W12V, 24V, 28V, 48V, 5V12V, 15V, 5V, ±12V, ±15V

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
